Izvorna cijena bila je: 2.216,47 €.1.805,03 €Trenutna cijena je: 1.805,03 €.

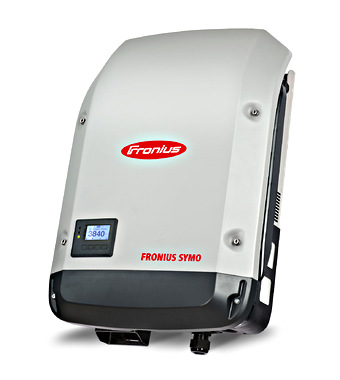

| PV Inverter | Symo 4.5-3-M |
| Number of DC connections | 2+2 |
| Number of MPPT trackers | 2 |
| DC Max. Input Current | 16.0A/16.0A |
| DC Max. Array Short Circuit Current | 24.0A/24.0A |
| DC Feed-in Start Voltage | 200V |
| DC Maximum Input Voltage | 1000V |
| DC Mininum Input Voltage | 150V |
| DC MPPT Voltage Range | 150-800V |
| AC Grid Connection Type | Three Phases |
| AC Rated Power | 4500W |
| AC Rated Grid Voltage | 400V |
| AC Voltage Range | 3~NPE 400V/230V or 3~NPE 380V/220V (+20%/-30%) |
| AC Rated Output Frequency | 50Hz/60Hz (45-65Hz) |
| AC Maximum Output Current | 6.5A |
| Overload Behavior | Operating point shift, power limitation |
| DC Disconnector | Included |
| Maximum Efficiency | 98.0% |
| European efficiency (ηEU) | 97.2% |
| Stand-by Consumption (night) | <1W |
| Monitoring System | WLAN, Ethernet LAN, 6 inputs and 4 digital in/out, USB, 2x RS422 (RJ45), Signalling output, Datalogger and Webserver, External Input, RS485 |
| Permitted Humidity | 0 to 100% |
| Max Operating Altitude | 2000m/3500m (unrestricted/restricted voltage range) |
| Protection Class | IP65 |
| Isolation Level | Transformerless |
| Cooling | Regulated air cooling |
| Dimensions | 645x431x204 mm, 19.9kg |
Froniusova nova generacija trofaznih pretvarača, obitelji bez transformatora i visoke učinkovitosti. Širok raspon ulaznog napona, dva MPPT -daju maksimalnu fleksibilnost u dizajnu sustava. Jedan od najkomunikativnijih pretvarača na tržištu, sposoban je komunicirati putem WLAN -a ili Etherneta ne samo s uređajima Fronius, već i kontinuirano prikupljati operativne podatke i slati ih na Internet.
